Link G5 Voodoo Neo 6 Standalone Engine Management System

Description

G5 Voodoo Neo 6

The next generation of engine management for many more engines.

The G5 Voodoo Neo 6 can run:

8 cylinders port or direct injection and direct spark, or
6 cylinders with direct/port staged injection, and direct spark

* Direct Injection (DI) requires an external OEM or aftermarket DI driver box, such as the DI Driver-4

The G5 Voodoo NEO is the perfect choice for professional level motorsport.

For more information please see the Features and Specifications tab or view our Product Introduction page here.

G5 Voodoo Neo Key Features

Highlights for both versions include:

• An all new communications module: 10x faster USB speeds (from minutes down to seconds to download log files), Ethernet, and enhanced WiFi and GPS.

• 1GB onboard of logging memory, double that of other Link ECUs.

• Highly customisable IO, using 2 types of multi purpose pins: Injection/Ignition/Aux pins and dual-purpose ADIO pins.

• Dual on-board E-throttle, with H-bridges that now natively support things like modern e-wastegates or e-blow off valves

• 1 onboard wideband

• Configurable Analogue Temp inputs, with two different pull up resistor values (1kΩ and 10 kΩ) , allowing more types of sensors to be used

• Analogue Temp pull-ups can be disabled now, allowing Analogue Temps to be used as regular Analogue Volt inputs.

• K-line support.

• CNC Case, Sealed enclosure

Discover more about the G5 Voodoo platform

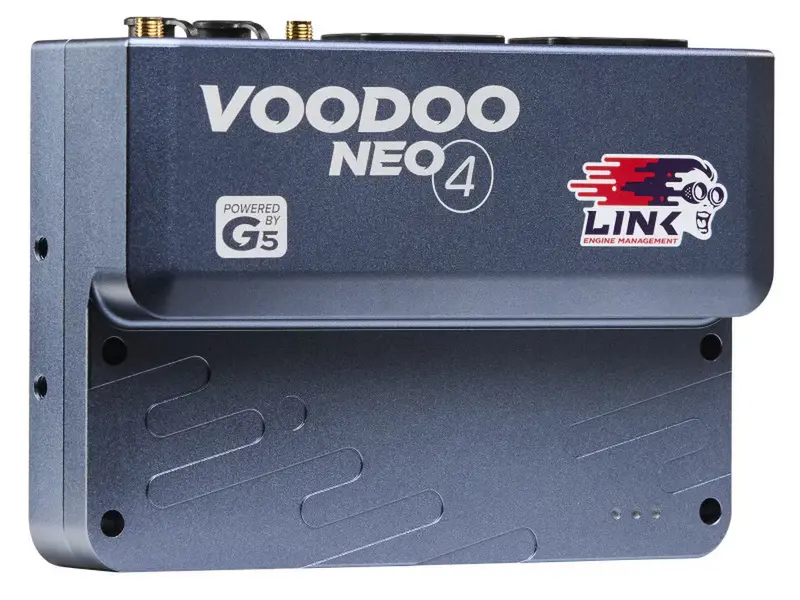

The G5 Voodoo Neo header with 68 pins superseal connectors (Link A and B), GPS, USB-C, Wi-Fi, Ethernet and CAN.

Huge time and flexibility gains for Installers:

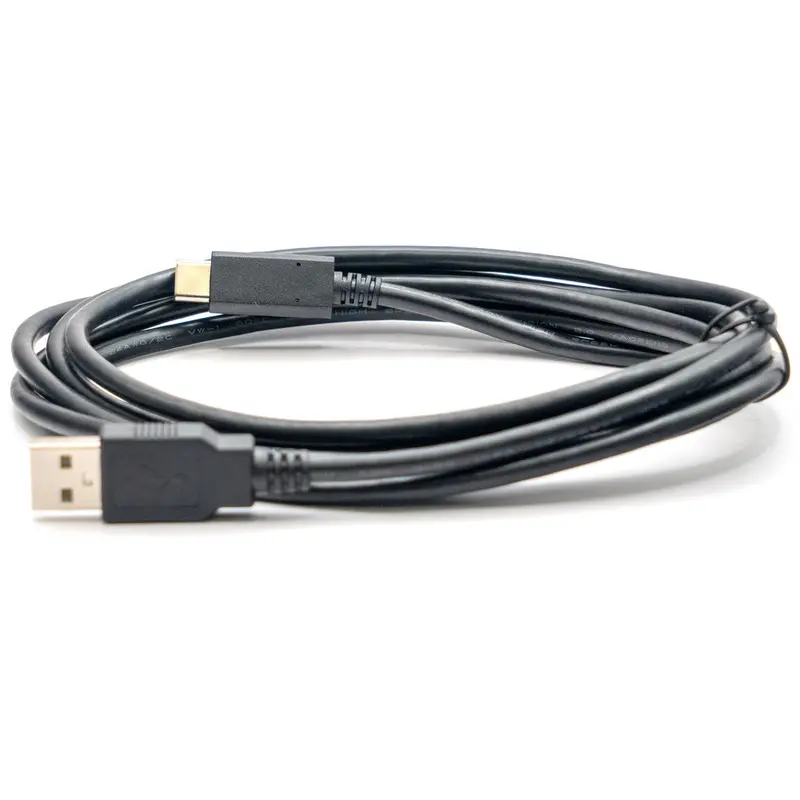

• You can now power via the USB cable, just like the Razor PDM, making setting up the initial tune a breeze at your PC.
• More mounting options than ever before, with through holes, and threaded mount holes on the side and underneath.
• New WEIPU CAN connector supplies power for CAN devices, massively simplifying CAN wiring and accessory installation.
• Highly customisable IO, with multi-use pins to maximize utilisation.
• Similar pinouts to G4X, allowing upgrades with minimal repinning.

G5 Voodoo ECU Specifications

OUTPUTS	G5 Voodoo Neo 4	G5 Voodoo Neo 6	G5 Voodoo Pro
Injecton Drives	8	12*	16‡
Ignition Drives	6	8	12‡
Auxiliary Outputs	12†	6	14
+5V Sensor Power Supply

† G5 Voodoo Pro ECUs use multi-purpose (inj/ing/aux) drives, allowing some pins to be used for either Inj or Ign or Aux
# Number of Auxiliaries depends on number of unused Inj/Ign drives available

INPUT/OUTPUT PINS	G5 Voodoo Neo 4	G5 Voodoo Neo 6	G5 Voodoo Pro
ADIO dual-purpose	6	6	–

INPUTS	G5 Voodoo Neo 4	G5 Voodoo Neo 6	G5 Voodoo Pro
Digital Inputs	10†	10*	10
Analogue Volt	3	3	14
Analogue Temp	4	4	4
Knock	2	2	2
Trigger	2	2	2

*G5 Voodoo Neo share certain Inj/Ign/Aux pins as additional Digital Inputs

*G5 Voodoo Neo ECU’s introduce ADIO pins, which can be used as Aux outputs, or An Volt inputs.

OTHER FEATURES	G5 Voodoo Neo 4	G5 Voodoo Neo 6	G5 Voodoo Pro
Onboard Wideband	1	1	2
H-Bridge (E-throttle)	2	2	2
GPS

COMMUNICATIONS	G5 Voodoo Neo 4	G5 Voodoo Neo 6	G5 Voodoo Pro
USB	USB-C	USB-C	USB-C
Power over USB			–
Wi-Fi
Ethernet			–
CAN Bus	2 Channel	2 Channel	2 Channel

DATA LOGGING	G5 Voodoo Neo 4	G5 Voodoo Neo 6	G5 Voodoo Pro
Onboard Logging Memory	1 GB	1 GB	512 MB
Maximum Total Logging Rate	100 khz	100 khz	100 khz
Logging Channels	250	250	250
